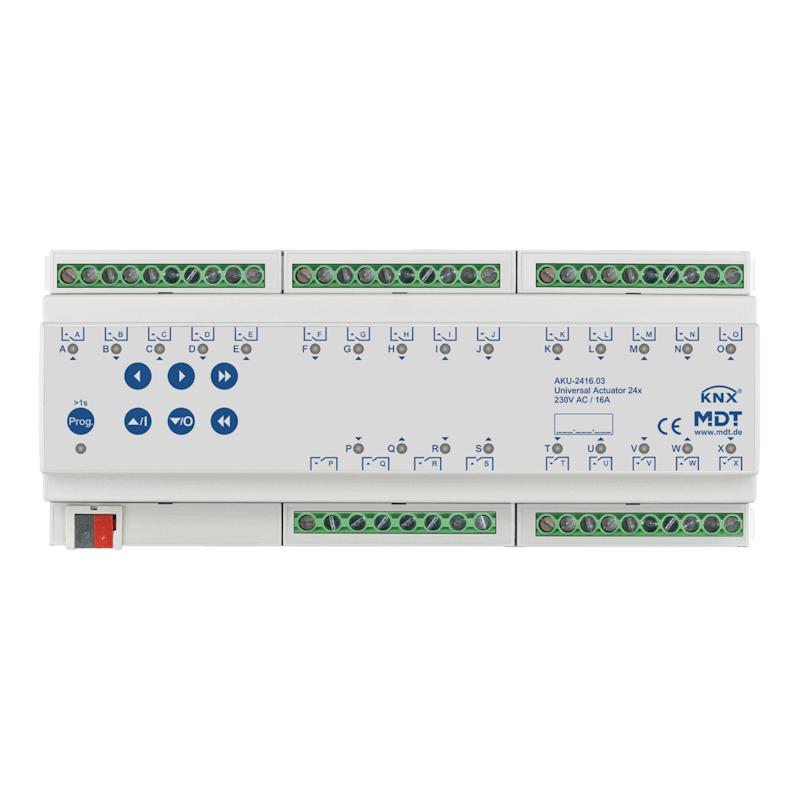

KNX Universal Actuator 24-fold, 8SU MDRC, 16A, 230VAC, 100 mF, 15 ECG.
✔ Compact design with bistable relays. Current max. 16 A with ohmic load, 100 mF / 15 ECG. With sun position calculation / shading. Comprehensive function extension.
✔ Can be used as Switch Actuator (max. 24-fold) or Shutter Actuator (max. 12-fold).
✔ Mixed applications of Switch- and Shutter Actuator possible. Heating control with PWM 0-100 %.
✔ Push Button and LED indicator for each channel. Practical ventilation function (window open/tilted). Automatic shading / slat tracking with sun position calculation.
✔ Time functions (switch-on/-off delay, staircase light function). Status response (active/passive) for each channel. Logical linking of binary data, 8 scenes per channel. Central switching functions and block functions. Operation mode blind/shutter adjustable. Running, pause and step time freely adjustable.
✔ Adjustable behavior in case of bus voltage failure/return. 4 mm2 / 2×2,5 mm2 connection terminals. Separate L-connections.
