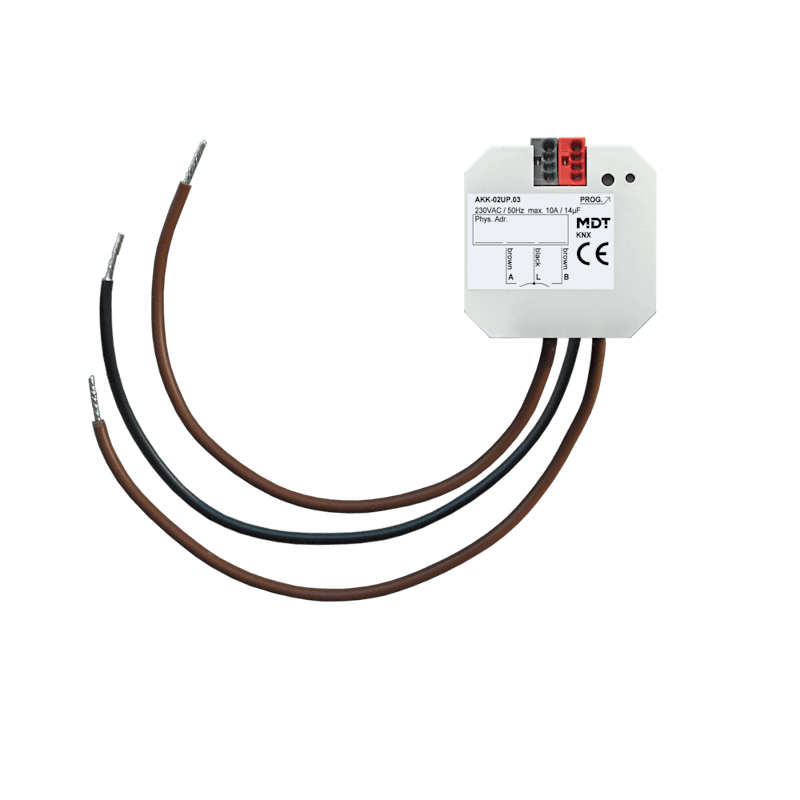

KNX Switch Actuator 2-fold, flush mounted, 10 A, 14 mF, 2 ECG, 230 V AC, Compact.
Flush mounted Switch Actuator with monostable relays.
Current max. 10 A with ohmic load, 10 A with 14 mF / 2ECG.
Function extension. NO and NC contact operation.
Time functions (switch-on/switch-off delay). Extensive staircase light and impulse functions. Status response (active/passive) for each channel. Logical linking of binary data. Extendend scene functions for each channel. Central switching functions and block functions. Adjustable behaviour in case of bus voltage failure or return. Flush mounted in an installation box. Dimensions (W x H x D): 41 mm x 41 mm x 22 mm.
Quick application download (long frame support for ETS5).
