KNX Presence Detectors
Οι KNX ανιχνευτές Κίνησης & Παρουσίας μας δίνουν πολύτιμες πληροφορίες που μπορούμε να τις αξιοποιήσουμε στο δίκτυο KNX.
Pos.1 KNX Mini Presence Detector 360°
The MDT Mini Presence Detector with 1 pyro sensor and a high-resolution lens detect even the smallest movements. For ceiling installation.
SCN-P360D1.01
Presence Detector, 1 pyro detectors, Light sensor (Presence max. 3-4m)
Best Seller! + Eξαιρετική Επιλογή + Value For Money!
- Presence detector with light sensor.
- 1 sensor with high resolution lens for detection. Coverage presence Φ3-4m.
- Switching function depending on brightness and movement.
- Brightness value can be read out.
- Master/slave function adjustable. Scene functions.
- Day/night function, monitoring with messages.
- HVAC control channel (adjustable over a certain period).
- Block and forced setting functions.
- Orientation light function for leaving the room.
- 35mm installation box included (depth 45 mm). Dimensions (WxHxD): 43x43x30mm
- Integrated bus coupling unit.
Pos.2 KNX Presence Detector D3/D4/K3/K4
MDT Presence Detector is available in several versions. Up to 4 pyro sensors and a high-resolution lens detect even the smallest movements.
SCN-P360D3.03 Presence Detector, 3 Sensors, White, Range 11m, Presence 5m.
SCN-P360D306.03 Presence Detector, 3 Sensors, Black, Range 11m, Presence 5m.
SCN-P360K3.03 Presence Detector, 3 Sensors, White, Constand Light Control, Range 11m, Presence 5m.
SCN-P360K306.03 Presence Detector, 3 Sensors, Black, Constand Light Control, Range 11m, Presence 5m.
SCN-P360R3.01 Mounting frame White for SCN-P360x3.xx (WxHxD): 75x75x14mm
SCN-P360R306.01 Mounting frame White for SCN-P360x3.xx (WxHxD): 75x75x14mm
SCN-P360D4.03 Presence Detector, 4 Sensors, White, Range 16m, Presence 8m.
SCN-P360D406.03 Presence Detector, 4 Sensors, Black, Range 16m, Presence 8m.
SCN-P360K4.03 Presence Detector, 4 Sensors, White, Constand Light Control, Range 16m, Presence 8m.
SCN-P360K406.03 Presence Detector, 4 Sensors, Black, Constand Light Control, Range 16m, Presence 8m.
SCN-P360R4.01 Mounting frame White for SCN-P360x4.xx (WxHxD): 85x85x14mm
SCN-P360R406.01 Mounting frame Black for SCN-P360x4.xx (WxHxD): 85x85x14mm
- 3 or 4 pyro detectors with lens for presence detection.
- Adjustable trigger and presence sensitivity for day, night and alarm.
- Up to 4 light channels, sensors can be evaluated individually.
- HVAC and alarm / notification channel.
- Short-term presence to reduce the follow-up time.
- Intelligent switching function for automatic / manual operation.
- Lock and forced guidance function.
- Extensive day / night function with second switch object.
- Integrated white LED night light.
- Orientation light function for leaving the room.
- Avoidance of false reports for the alarm channel by reducing the sensitivity and adjustable observation window.
Pos.3 KNX Presence Detector 360°
Presence detectors for installation in hollow ceilings. IP44 fro WET places.
SCN-P360L2.03 Presence detector 360° IP44. 2 sensors, Ψευδοροφής, Range 9m, Presence 5m
IP44 For Wet Places!
SCN-P360L3.03 Presence detector 360°. 3 Sensors +Temp, Ψευδοροφής, Range 11m, Presence 5m
- 2/3 sensors with lens for presence detection.
- Adjustable trigger and presence sensitivity for day, night and alarm.
- SCN-P360L2 Range Φ9m, presence Φ5m. IP44, suitable for installation in wet rooms eg. bathrooms.
- SCN-P360L3 Range Φ11m, presence Φ5m. Integrated Temperature sensor.
- 2/3 light channels, individual evaluation of sensors.
- 1 HVAC and 1 alarm / notification channel.
- Energy saving through efficient control according to demand.
- Short time presence to reduce the time lapse.
- Input for an external push-button with release time.
- Intelligent switchover function for automatic/manual operation.
- Blocking- and forced function with release time.
- Extensive day / night function with 2nd switching object.
- Integrated white LED night light. Orientation light function for leaving the room.
- Avoidance of false reports of the alarm channel by sensitivity reduction and observation window adjustability.
- Integrated bus coupler.
Pos.4 KNX Micro Presence Detector 360°

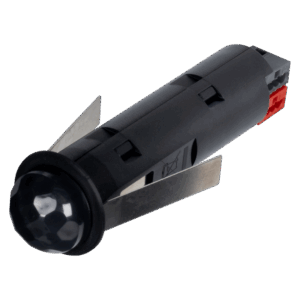

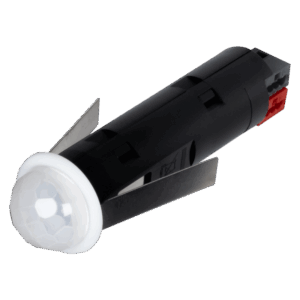

PSE-PMC01.01S Micro Presence Detector 360, White, Range 7m, Diam.18mm dept 70mm.
PSE-PMC06.01S Micro Presence Detector 360, Black, Range 7m, Diam.18mm dept 70mm
KNX Micro Presence Detector 360° with integrated temperature sensor. The small and discreet presence detector detects movements within a diameter of 7 metres. Suitable for installation in suspended ceilings. KNX Secure.
- With temperature sensor to measure room temperature
- With brightness sensor
- Range: 7m
- 1 HVAC- and 1 Alarm-/ message object
- Short-term presence to reduce the follow up time
- Input for external Push-button with release time
- Intelligent toggle function for automatic and manual operation
- Blocking- and forced operation with release time
- Extensive day/night function with a second switching object
- Flush installation, drilling diameter: 18mm
- Installation dept: 70mm
- Integrated Bus coupler, KNX Data Secure
Pos.5 KNX Micro Micro Motion Detector.

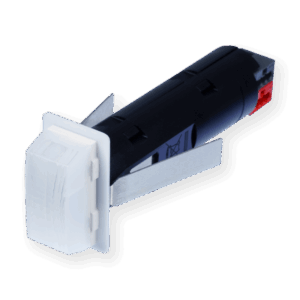

PSE-BWML01.01S Micro Motion Detector, Secure, White. Detection angle H150 / V35, range 5m.
PSE-BWML01.01S Micro Motion Detector, Secure, Black. Detection angle H150 / V35, range 5m.
The KNX micro motion detector detects movement within a vertical detection angle of 35° and a range of 5 m. It is designed for hollow wall mounting and equipped with a brightness and temperature sensor. KNX Secure.
- Detection angle H 150° / V 35°, range 5 m
- With temperature sensor to measure room temperature
- 1 lighting, HVAC and alarm/signalling channel each
- Short-term presence to reduce the follow up time
- Master/slave function selectable
- External Push-button input for automatic and manual operation
- Blocking- and forced operation with release time
- Recommended installation height: 0.3 … 1.20 m
- Integrated Bus coupler
- KNX Secure
Pos.6 KNX Presence Detector MR16
Installation in standard MR16 mounting frames. The MDT Presence Detector with 3 pyro sensors and a high-resolution lens detect even the smallest movements. Integrated temperature sensor and LED night light.
SCN-P360E3.03 Presence Detector MR16, 3 sensors, With temp sensor +LED night light.
- 3 sensors with lens for presence detection.
- Adjustable trigger and presence sensitivity for day, night and alarm.
- Coverage Φ11m, presence Φ5m.
- 3 light channels, sensors can be individually evaluated.
- HVAC and alarm/notification channel. Short-term presence to reduce the follow-up time.
- Integrated temperature sensor.
- Input for an external push-button with reset time.
- Intelligent switching function for automatic/manual operation.
- Lock and forced guidance function.
- Extensive day/night function with second switching object.
- Integrated white LED night light. Orientation light function (brightness and time adjustable).
- Avoidance of false reports for the alarm channel by reducing the sensitivity and adjustable observation window.
Pos.7 KNX Presence Detector 360°
PSE_B552T01.02 Motion Detector, 2 sensors & temperature. For wall mount at 2.2m, Range 11m. White Matt.
PSE_B552T02.02 Motion Detector, 2 sensors & temperature. For wall mount at 2.2m, Range 11m. White Glossy.
PSE_B552T06.02 Motion Detector, 2 sensors & temperature. For wall mount at 2.2m, Range 11m. Black.
- Suitable for 55 mm switch ranges
- Motion detector with 2 sensors and brightness sensor. Range 11m
- Temperature sensor to measure the room temperature
- Activation sensitivity for day, night, and presence individually selectable
- 2 Light channels, 1 HVC- and Alarm channel
- Short-term presence to reduce the follow up time
- Master/slave function, scenes and logic functions
- Day/Night function
- Blocking- and forced operation with release time
- External Push-button input for automatic and manual operation
- Recommended installation height: 2.20 m
- Installation in an installation box using the included installation frame
- Integrated Bus coupler
Pos.8 KNX Glass Presence Detector.
The MDT Glass Presence Detector is available in two versions. 3 pyro sensors and a high-resolution lens detect even the smallest movements.
SCN-G360D3.03 Glass Presence Detector, 3 Sensors, Temp Sensor, Range 11m, Presence 5m.
SCN-G360K3.03 Glass Presence Detector, 3 Sensors, Temp Sensor, Constand Light Control, Range 11m, Presence 5m.
- White glass front, integrated temperature sensor.
- 3 pyro detectors with lens for presence detection.
- Adjustable trigger and presence sensitivity for day, night and alarm
- Up to 4 light channels, sensors can be evaluated individually.
- HVAC and alarm/notification channel.
- Short-term presence to reduce the follow-up time.
- Intelligent switching function for automatic/manual operation.
- Lock and forced guidance function.
- Extensive day/night function with second switch object.
- Integrated white LED night light. Orientation light function.
- Avoidance of false reports for the alarm channel by reducing the sensitivity and adjustable observation window.
Pos.9 KNX Motion Detector / Automatic Switch 55
The The MDT Motion Detector / Automatic Switch with light sensor detects the smallest movements using 2 pyro detectors and a high-resolution lens.
SCN-BWM55.02 Motion Detector/Automatic Switch 55, White matt. Εξαιρετική Επιλογή
SCN-BWM5506.02 Motion Detector/Automatic Switch 55, Black
SCN-BWM55.G2 Motion Detector/Automatic Switch 55, White glossy
SCN-BWM55T.02 Motion Detector/Automatic Switch 55, White matt, +Temp sensor +2 keys
SCN-BWM55T06.02 Motion Detector/Automatic Switch 55, Black, +Temp sensor +2 keys
SCN-BWM55T.G2 Motion Detector/Automatic Switch 55, White glossy, +Temp sensor +2 keys
Two separate lighting channels, one HVAC channel and 1 channel for room monitoring can be configured. Room brightness is measured by the integrated light sensor and made available as an object. Version with temperature sensor and 2 buttons (SCN-BWM55T.x2) is an all-rounder if you have many corridors and rooms.
Fits into Frames System55, White: GIRA Standard 55, E2, E22, Event, Esprit | BERKER S1, B3, B7 | JUNG A 500, A PLUS, A CREATION, AS 500, A550, A FLOW | MERTEN 1M, M-Smart, M-Plan, M-Pure. Black: GIRA E2 | BERKER B3, B7 | JUNG A550 | MERTEN M-Pure
- Motion detector with 2 pyro sensors and light sensor.
- Temperature sensor & 2 freely programmable sensor keys (SCN-BWMxxT).
- Motion detection angle H 180/V15, coverage Φ6-10m.
- Suitable for pets up to 12 kg.
- Sensitivity separately adjustable for day/night/presence.
- Detects the direction of movement. 2 light channels, 1 channel for HVAC and alarm.
- Short-time presence to reduce follow-up time.
- Master/slave function, scenes and logic functions.
- Integrated white LED night light. Day/night function, orientation light function.
- Lock and forced guidance function.
- External push-button input for automatic and manual operation.
- Integrated bus coupling unit.
Pos.10 KNX Presence Detector 360° with CO2 & VOC & Indication Led.
Combi-Presence Detector with constant light control and Air-quality signal light function
SCN-KP360K301.03 Presence Detector 360° +climate sensors CO2 and VOC, White
SCN-KP360K306.03 Presence Detector 360° +climate sensors CO2 and VOC, Black
SCN-KP360R301.01 Installation frame for SCN-KP360R301, White
SCN-KP360R306.01 Installation frame for SCN-KP360R306, Black
- KNX Combi Presence Detector 360°. Sensors for CO2 and VOC mixed gas concentration, relative humidity and temperature.
- Passive infrared presence detector with 3 sensors for ceiling installation.
- Constant light control for up to 3 light strips.
- Upper and lower threshold value adjustable for each measured value.
- Visualization of the air quality by means of an internal RGB LED.
- Air-quality lamp function adjustable to CO2 or VOC sensor with 4 colour channels and adjustable 1 bit / scene / RGB or HSV output objects.
- Detection area 360°, coverage Φ11m, presence Φ5m.
- 1 HVAC and 1 alarm / notification channel.
- Adjustable sensitivity and presence sensitivity for day, night and alarm.
- Short-time presence to reduce stopping time Block and forced setting functions with release time.
- Air-quality control function adjustable as step / PI controller for CO2 or VOC sensor.
- Integrated room temperature controller with externally adjustable setpoint and selectable control parameter.
