KNX Dimmers

Τα KNX Dimmers είναι ενεργοποιητές οι οποίοι μπορούν να μεταβάλλουν την ροή του φωτισμού.
Υπάρχουν πολλά είδη dimmers που αντιστοιχούν στην τεχνολογία της λάμπας που έχουμε. Dimmers 230VAC, 1-10V, Led Strips 12/24VDC, Dali κα.

Pos.1 KNX Dimmer Actuator.

The MDT Dimming Actuator AKD is optimised for dimmable 230 V LED lamps. Extensive setting parameters offer, option of dimming the light depending on the time of day or (depending on the location) according to the astronomical sunrise and sunset. Separate parameters for each channel and load type ensure the best possible dimming behaviour of the connected lamps.

AKD-0201.02 Dimming Actuator 2-fold, 3TE MDRC, 2X250W or 1X500W
AKD-0401.02 Dimming Actuator 4-fold, 6TE MDRC, 4X250W, 1X500W +2X250W or 2X500W Εξαιρετική Επιλογή

Comprehensive application.
Optimized for dimmable LED lights >2W.
For HV-halogen lights and LNV-halogen lights with transformer /EVG.
Operation in leading-edge or trailing-edge selectable.
Active power measurement.
Integrated diagnostic function with plain text message.
Overload- /short circuit- and temperature protection with message.
Time functions (switch-on /switch-off delay, staircase light function).
Automatic time dependent dimming. Day /Night function.
Soft start, global and individual dimming speed.
Parallel operation of 2 channels with 500 W total power output.
Push Button for manual operation and indicator for each channel.
Separate L- /N connections for each channel (different phases possible L1, L2, L3).
Production in Germany, certified according to ISO 9001.

Data Sheet

Technical Manual

Pos.2 KNX Dimmer 1-10V.

The MDT Dimming Actuator AKD with 4 channels for controlling 1-10 V electronic ballasts. The actuator dims 4 lighting circuits with up to 30 electronic ballasts each. When using RGB(W) light sources, these can be conveniently dimmed and adjusted in colour via the HSV objects.

AKD-0410V.02 Dimming Control Device 4-fold 4TE MDRC, 1-10V, With RGBW functionality

Push Button for manual operation and indicator for each channel.
To control 1-10 V electronic transformers (ECG).
With RGBW functionality. RGB und HSV control with extensive color functions.
Voltage reversal protection.
Offers control voltage up to 30 ECG (each channel).
Embedded switching relays for 30ECG/30W, 20ECG/58W, 15ECG/2x36W, 10ECG/2x58W.
Adjustable switch-on behavior. Minimum /maximum brightness value adjustable.
Adjustable dimming speed. Central switching functions.
8 scenes per channel. 1 Bit automatic function.
Production in Germany, certified according to ISO 9001

Data Sheet

Technical Manual

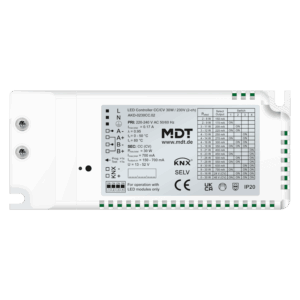

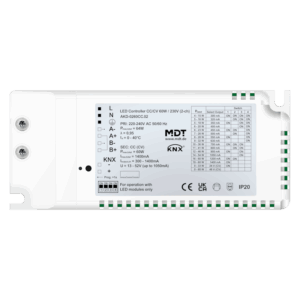

Pos.3 KNX Dimmer LED Controller RGB(W).

With the flush-mounted version of the MDT LED Controller AKD, typical LED lamps with 12 V and 24 V constant voltage (CV) can be dimmed. Whether it be single-colour LED-Spot, Tunable White or RGB(W) Stripes, the outputs of the LED controllers can be individually adjusted.

AKD-0224V.02 LED Controller flush, 2-channel, 3/6A, for 12/24V CV LED, 2 separate channels
AKD-0324V.02 LED Controller flush, 3-channel, 3/6A, for 12/24V CV LED, 3 separate channels or RGB, TW
AKD-0424V.02 LED Controller flush, 4-channel, 3/6A, for 12/24V CV LED, 4 separate channels or RGBW, TW

Comprehensive function extension.
Absolute and relative dimming. Tunable White color temperature control.
Selectable dimming curve and PWM frequency up to 1000Hz.
Global and individual dimming speeds.
Repetition of sequences for automatic color control.
Suitable for 12/24V CV LED (Common Anode), 3A for each color channel .
AKD-0224V.02: 2 channels each 3A.
AKD-0324V.02: 3 channels each 3A or 1 ch. 4,50A and 2 ch. 2,25A.
AKD-0424V.02: 4 channels each 3A or 1 ch. 5,25A and 3 ch. 2,25A.
Parallel operation of 2 channels. Modes: 4xWhite, RGB, RGBW, Tunable White.
Automatic color temperature control Dim2Warm. Dynamic daylight control HCL (Human Centric Lighting). Automatic time-dependent dimming. Day / night function.
Overcurrent and overtemperature monitoring.
Intelligent 16A C-load relay output to control external LED power supply.
Production in Germany certified according to ISO 9001

AKD-0424R.02 LED Controller 4-channel, 4/8A For 12/24V CV LED, 4 separate channels RGBW, TW
AKD-0424R2.02 LED Controller 4-channel, 2/4A For 12/24V CV LED, 4 separate channels RGBW, TW

Οπως παραπάνω με διαφορές στα :
Absolute and relative dimming for HSV color space and RGBW.
Suitable for 12/24V CV LED (Common Anode), 4A for each color channel.
AKD-0424R2.02: 4 channels each 2A or 1 ch. 3.5A and 3 ch.1.5A.
AKD-0424R.02: 4 channels each 4A or 1 ch. 7.0A and 3 ch.3.0A.
Intelligent 16A C-Load Relay output to control external LED power supply (not AKD-0424R2.02).

Data Sheet 02+03+0424V

Data Sheet 0424R/2

Technical Manual

Pos.4 KNX Dimmer DALI Control 64 Gateway.

The MDT DALI Control 64 Gateway forms the interface between the KNX and the DALI bus.
The gateway supports DALI and DALI-2 compliant lights/ballasts, from single colour to Tunable White, to RGB(W).

SCN-DA641.04 DALI Control 64 Gateway, 4SU MDRC, 64 ECGs/16 DALI groups. Εξαιρετική Επιλογή
SCN-DA642.04 DALI Control 2×64 Gateway, 4SU MDRC, 2x64ECGs/16 DALI groups (2DALI outputs). Value For Money!

SCN-DA641.04: Individual control of up to 64ECGs/16 DALI groups.
SCN-DA642.04: 2 DALI outputs for max. 2x64ECGs; individual control of up to 64ECGs/16 DALI groups per output.
Supports DALI and DALI-2 standard, as well as DALI ECG DT6 /DT8.
Innovative HSV color control, RGB, RGBW and XY color according to DALI DT8 standard (16 DALI groups).
Tunable White, color temperature control (16 DALI groups).
Integrated color control module for time-dependent control of the luminous color in up to 300 steps.
Operation modes incl. normal operation, continuous operation, night operation, stairwell- and panic operation, manual operation.
16 scenes with individual dimming times.
Energy saving function for switching off the ECGs in the DALI groups (via additional KNX switch actuator).
Fault detection of lamp faults and faulty ECGs. Quick exchange of ECG.
Free DCA app for commissioning the DALI bus system and configuration of the scenes and time control.
Commissioning with ETS5 or higher.
Production in Germany certified according to ISO 9001

Data Sheet

Technical Manual

Pos.5 KNX Dimmer DALI Control PRO64 Gateway.

The MDT DALI Control PRO64 Gateway is a multi-master application controller for controlling electronic ballasts (ECG) with a DALI interface using the KNX bus.

SCN-DA641P.04S DALI Control PRO64 Gateway, 4TE REG, 64 EVG/16 DALI Groups.

Aside from supporting DALI and DALI-2 compliant lights/ballasts, up to 8 DALI-2 motion detectors or light sensors can be connected. Using the integrated web interface, DALI commissioning and electronic ballast replacement is also possible without using the ETS.

Individual control of up to 64ECG/16 DALI groups. KNX Secure device.
Supports DALI and DALI-2 standard.
Up to 8 DALI-2 motion detectors or light sensors can be additionally connected.
Innovative HSV color control, RGB, RGBW and XY color according to Dali DT8 standard, 64 individual Channels /16 DALI groups. Supports different DALI DT6/DT8 ECG.
Tunable White, color temperature control 64 individual Channels /16 DALI groups.
Integrated color control module for time dependent control.
Manual operation for all 16 groups. 16 scenes with individual dimming times.
Energy saving function, 16 flexible standby groups for switching off any individual channels /groups of ECGs (via additional KNX switch actuator). Simple group attribution directly on the device.
Dali Commissioning via Web browser or directly on the device display.
Detection of faulty lamps and faulty ECGs, quick exchange of ECG.
Free DCA app for commissioning the DALI bus system.
Commissioning with ETS5 or higher.
Production in Germany certified according to ISO 9001
