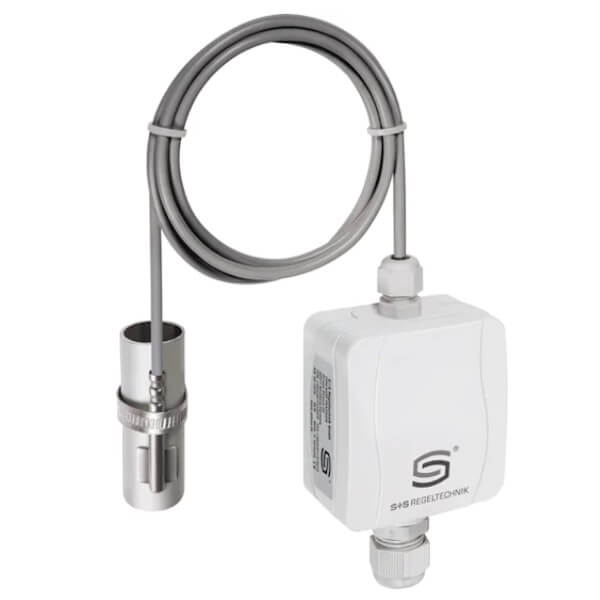

Surface contact Temp Transducer | ALTM2-SD-I

Surface contact / tube contact temperature measuring transducer | ALTM2-SD-I |
Voltage supply: 15…36 VDC depending on working resistance, residual ripple stabilised ±0.3 V | Sensor: Pt1000, DIN EN 60751, class B | Measuring ranges: multi-range switching with 8 switchable measuring ranges, detached sensor variant: Tmax over 100 °C, operating range –50… +150 °C | withmAnual zero point correction (±10 K) | Temperature deviation: typically ±0.2 K at +25 °C | Permissible air humidity: < 95 %RH, non-precipitating air | Housing: plastic, UV-stabilised | Equipment: none | sensor cable: Silicone | cable length (KL) = 1.5m | Cable gland: M 16 x 1.5, including strain relief, exchangeable,mAx. inner diameter 10.4mm | Protection type: IP 43 | Sku:1101-6152-0219-920
