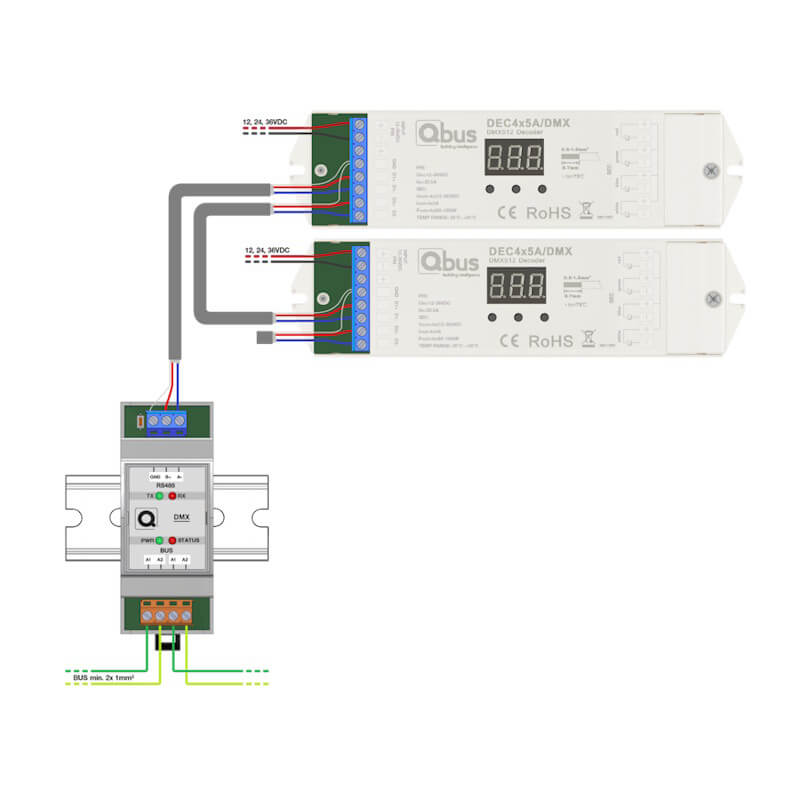

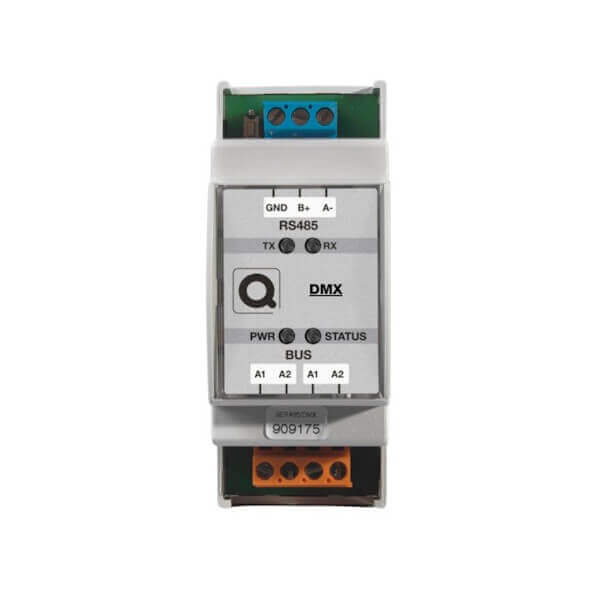

The Qbus DMX interface allows controlling up to 48 DMX channels via the Qbus system.
Choose the desired color, play one of the 4 pre-configured “scenes” with color transitions, and control it all via Qbus switches, screens, and Qbuscontrol.
✅ Compatible with all types of DMX lighting
✅ Up to 254 DMX channels controllable per module.
✅ Supports RGB, RGBW, and WWCW.
✅Create dynamic lighting scenes
Per Qbus/DMX interface, a maximum of 48 links can be established between Qbus I/Os and DMX channels.
A Qbus RGBW mode uses 4 links for the individual colors and 4 links for controlling scenes, fixed colors, and intensity. Therefore, when using the color wheel within the Qbus system, 6 RGBW modes can be supported via 1 Qbus DMX interface.
An RGB mode uses 6 connections – hence, a maximum of 8 can be used.
Warm White Cold White mode uses 4 connections, allowing 12 to be used.
A mix of applications can be applied on DMX. From the 48 links available, among others, timers, dimmers, bistable I/Os can also be linked to a DMX channel.
The highest adjustable DMX address that can be linked to a Qbus I/O is 254.
