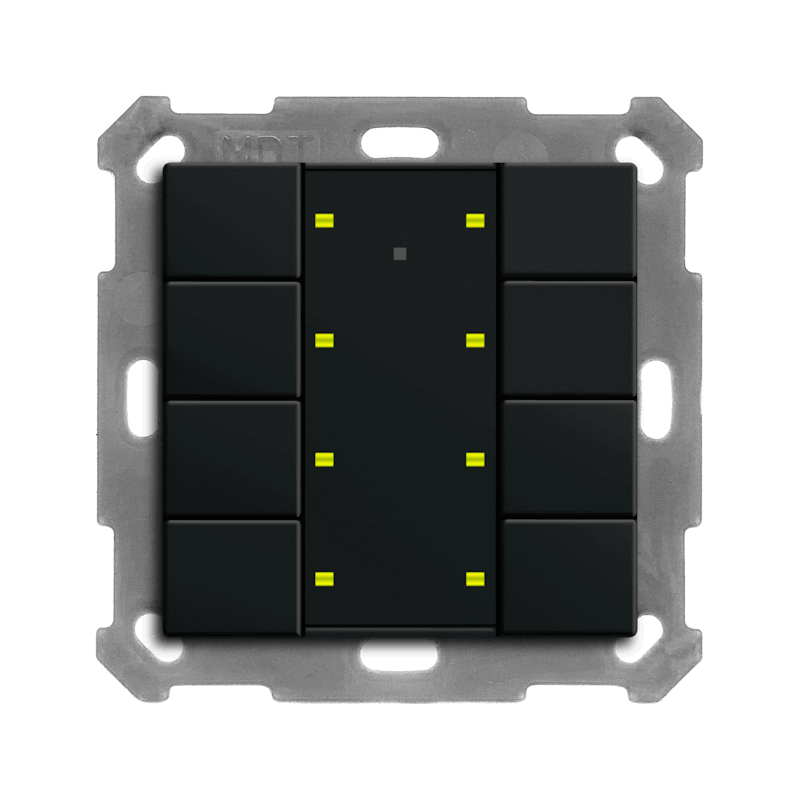

KNX RF+ Push Button Plus 8-fold w. Actuator, Black matt.
✔ With 8 rockers and LED for operation, status and orientation. Current max. 10 A ohmic load, 10 A with 14 mF / 2 ECG.
✔ For operating inside the EU, 868 MHz. New KNX RF+ protocol in system mode. Commissioning with ETS5.
✔ Fits all switches with 55 mm rocker. Push Buttons can be programmed for 1 or 2 button operation. NO or NC contact operation, operational time of Push Button adjust. Forced setting function for each output. Operation with short/long button push and 2 objects. ✔ Operation of blinds and shutters, 1 and 2 button operation.
✔ Can be set as 2-fold switching actuator or 1-fold shutter actuator.
✔ Connection via MDT KNX RF+ line coupler.
Centered texting area for individual description.
To replace conventionel Push Buttons. To upgrade your installation without installing KNX bus cables. Power supply 230VAC. Installation with support ring (included in delivery).
Similar Products, Data Sheet, Technical Manual: www.mdt-knx.gr
