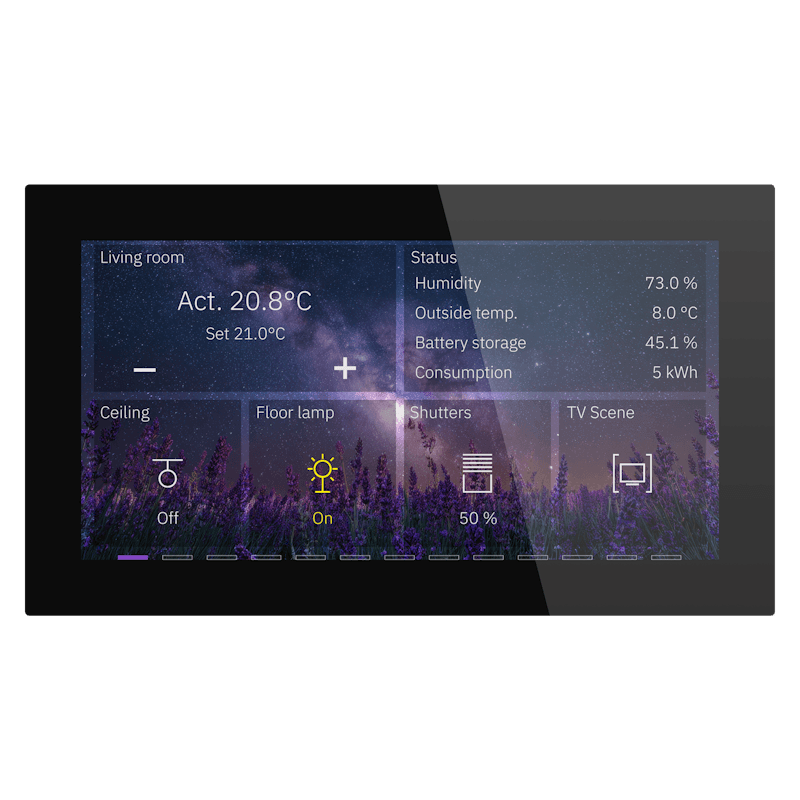

KNX Glass Touch Smart 6-inch, Black.
✔ Circumferential backlighting: white
✔ “As individual as you are” is the motto of the new MDT multifunctional push-button, which impresses with its high-quality design. Horizontally and vertically mountable, the 6-inch display can be individually divided via the ETS and customised with colours, logo or ✔ background image. An all-round orientation light rounds off the modern design of the Glass Touch Smart. Equipped with up to 64 functions, up to 12 status displays can be visualised on individual levels. The push-button is equipped with a temperature sensor and a room temperature controller for heating and cooling mode.
✔ Multifunctional push-button with capacitive, high-resolution 6-inch TFT-colour display (1440 x 720 Pixel).
✔ Elegant and detailed design, combining glass and brushed aluminium.
✔ White circumferential orientation light.
✔ Up to 64 functions on independent levels and 12 statuses in standby. Room functions: switching, dimming, tuneable white, HSV, RGB, RGBW, sun shading, HVAC
✔ Shortcut function (to a specific level).
✔ Temperature controller with temperature sensor for heating and cooling operation.
✔ Logic functions, scene control, innovative group control.
✔ Display of status information (1 Bit) and notification (14 Byte).
✔ Security against unauthorised access through code lock function (1 user).
✔ Individual customised design according to customer requirements (Logo, Background picture, design colour).
✔ With anti-theft / anti-dismantling protection.
✔ Auxiliary power 24 … 30 V DC
✔ Integrated Bus coupler, KNX Data Secure
✔ Installation: horizontally or vertically
✔ Dimensions (H x W x D): 92 x 160 x 12.5 mm
Similar Products, Data Sheet, Technical Manual: www.mdt-knx.gr
